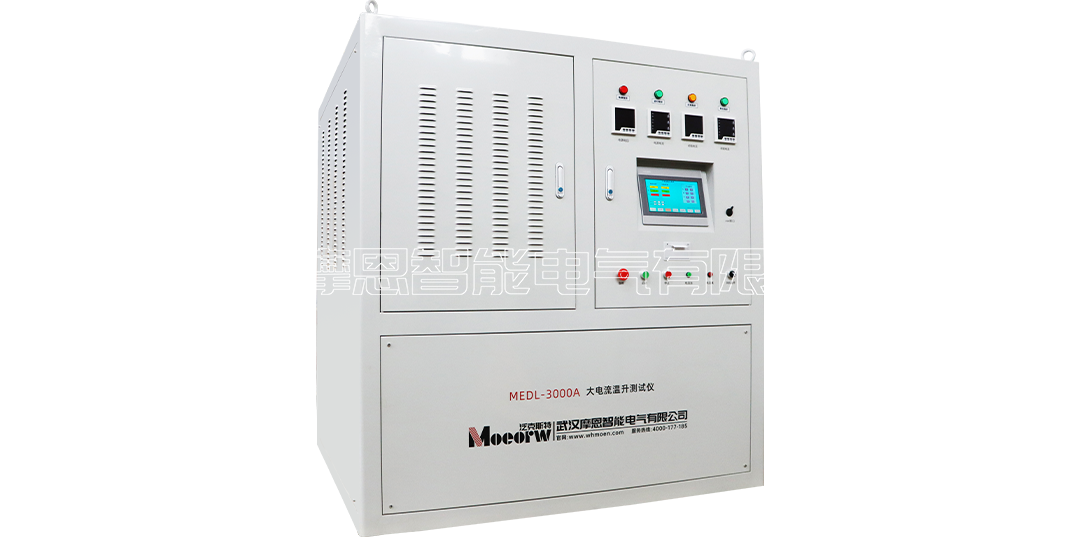

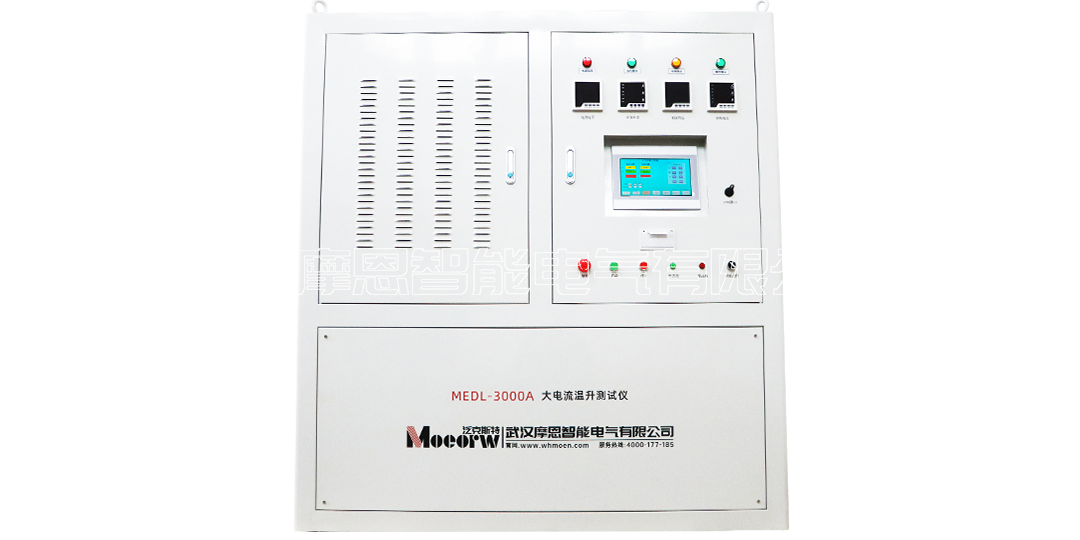

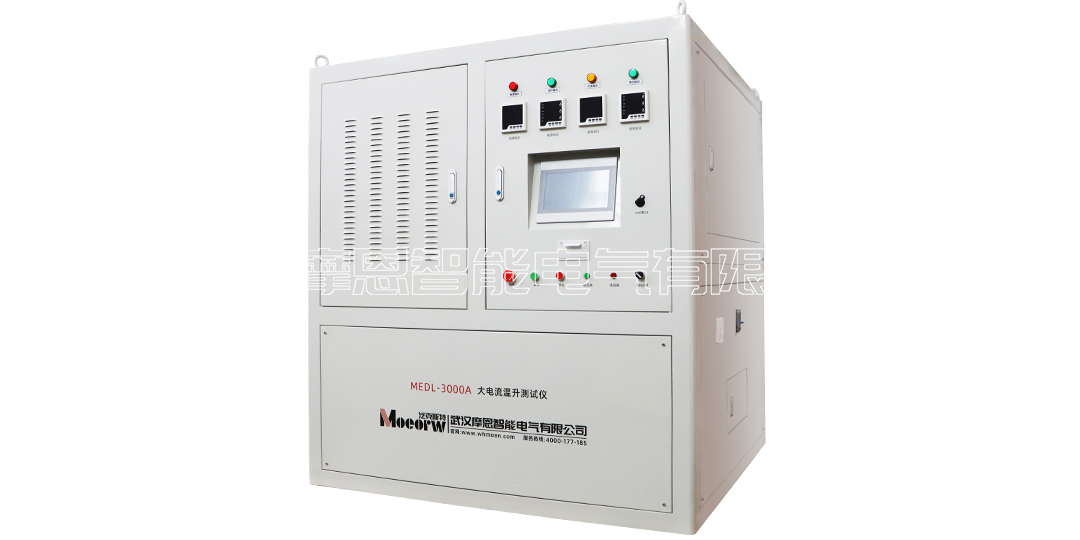

MEDL-3000A High current temperature rise tester Send email to us

● Large-screen LCD display of data such as current, time, status information and prompt information, with clear and intuitive readings;

● Full English interface, simple and clear operation, suitable for a variety of applications;

● All touch screen buttons can be operated, intuitive, fast and easy to use.

● Full digital calibration method, abandoning the old potentiometer adjustment, extremely convenient on-site use, easy to control accuracy;

● Status reminder function, guided operation, even without instructions, can be skillfully controlled;

● Pause function, during automatic control, this function can achieve the pause of the current rise/fall process at any point, the pause time can be flexibly controlled by the test personnel, convenient for observing the test product status;

● Automatic timing function, when the experiment is paused, the timing stops and the pause time starts. When the test is continued, the output time starts again.

● Manual timing function, when manually controlled, the timer can be started manually.

● Manual control mode, this mode is similar to the traditional electric rise/fall mode, the increase/decrease of current is controlled by buttons, the equipment automatically determines the upper/lower limit, and has overcurrent protection and other functions. The entire test process is manually controlled and operated on demand;

● Transformer ratio test function, which can automatically calculate the current of the transformer

● With stop/emergency button, it can be manually restored;

● Intelligent control of current rise and fall speed, when the current approaches the target current, the current rise speed will automatically slow down;

● Data export function, the device data can be stored on the computer through the U disk for further processing. (Some models)

● When overcurrent or other faults occur, the protection is immediate, accurate and reliable;

● The combination of hardware and software anti-interference technology has stable performance and strong anti-interference ability. There will be no abnormal phenomena such as freezing, black screen, or flowery screen during the test.

Rated capacity (common parameters): 40KVA*3
Input current: AC 0 ~ 105.2A
Output voltage: AC 0 ~ 12V

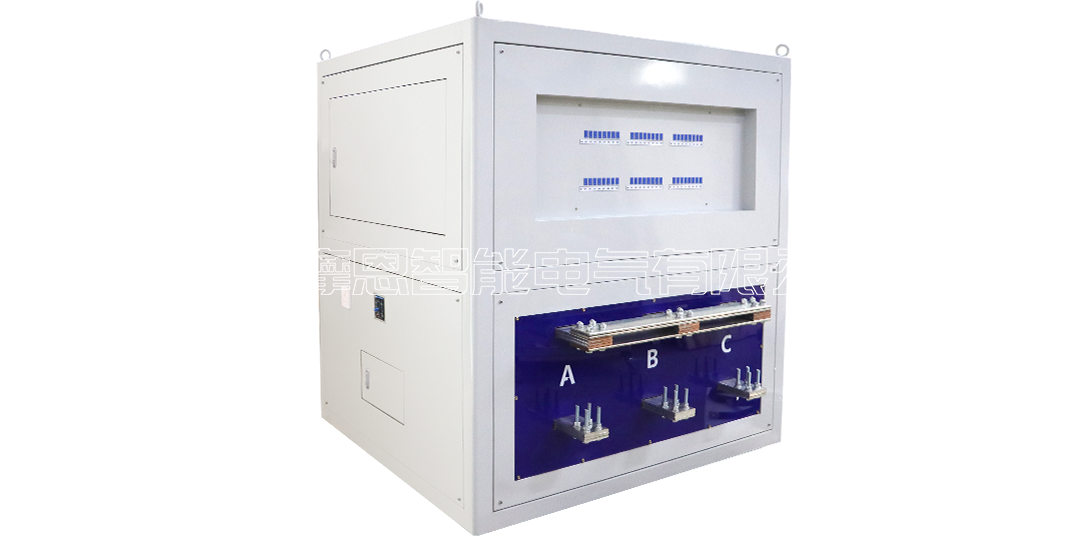

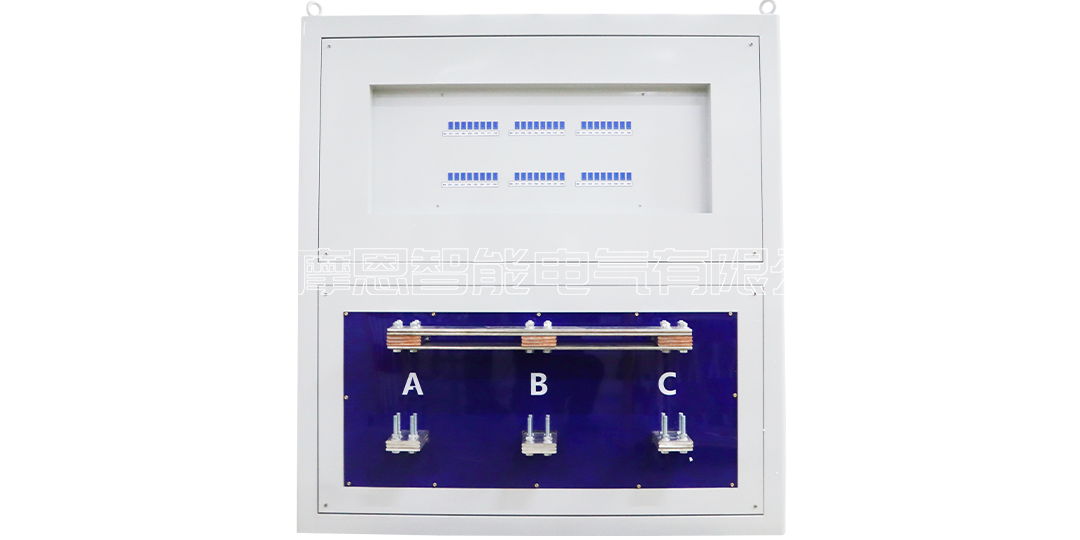

Output current: AC 0 ~ 3000A*3
Voltage measurement accuracy: 0.5% FS ± 3 digits
Current measurement accuracy: 0.5% FS ± 3 digits
Timing length: 0 ~ 99999999S
Power supply voltage: AC 380V ±10%, 50Hz±1 Hz
Ambient temperature: -10--40℃
Altitude: <1000M
Relative humidity: <85%
There should be no gas, steam, chemical dust and other explosive and corrosive media that seriously affect insulation in the use site.
