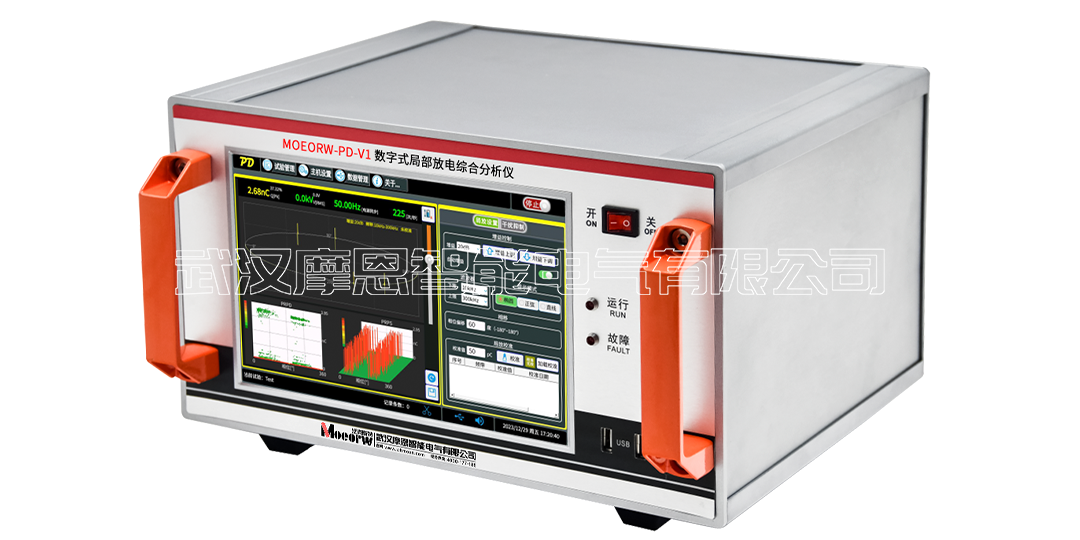

MOEORW-PD-V1 Digital Partial Discharge Comprehensive Analyzer Send email to us

Partial discharge measurement system
1. Number of partial discharge measurement channels: single channel
2. Input impedance 50Ω
3. Analog filter (-6dB) meets IEC60270, GB/T7354-2018 standards
Lower limit frequency fL: 10kHz, 20kHz, 40kHz, 60kHz, 80kHz optional
Upper limit frequency fU: 100kHz, 200kHz, 300kHz, 400kHz, 500kHz, 1MHz optional
4. Detection sensitivity <1pC (CA=10nF/CK=1nF)
<0.1pC (CA=1nF/CK=1nF)
5. Measurement range 0.05pC-10000nC
6. Sampling accuracy 14bit
7. Sampling rate 60MHz
8. Gain adjustment range 60dB, 40dB, 20dB, 0dB, -20dB, -40dB automatic or manual adjustable
9. Capacitance range of testable products: 6pF~250μF
10. Linearity error <±3%

Voltage measurement system
1. Voltage input range: 5~230VAC (RMS)
2. Linearity error: <±3%
3. Frequency range: 10~450Hz
4. Synchronization mode: automatic switching between power synchronization or voltage input synchronization
5. Synchronization accuracy: <1°

Interface
1. Partial discharge input: 1×BNC
2. Voltage input: 1×aircraft plug
3. Communication interface: 1×RS232

Host parameters
1. Operating system: Linux operating system
2. Storage: 8G and above
3. Power supply: 176~264 VAC, 50/60Hz
4. Power fuse: 250V T 5A
5. Operating temperature: -10°C~50°C
6. Storage temperature: -40°C ~60°C
7. Relative humidity 5%~95%, no condensation
8. External dimensions: 355mm×282mm×200mm (width×depth×height)
9. Weight: 11kg
