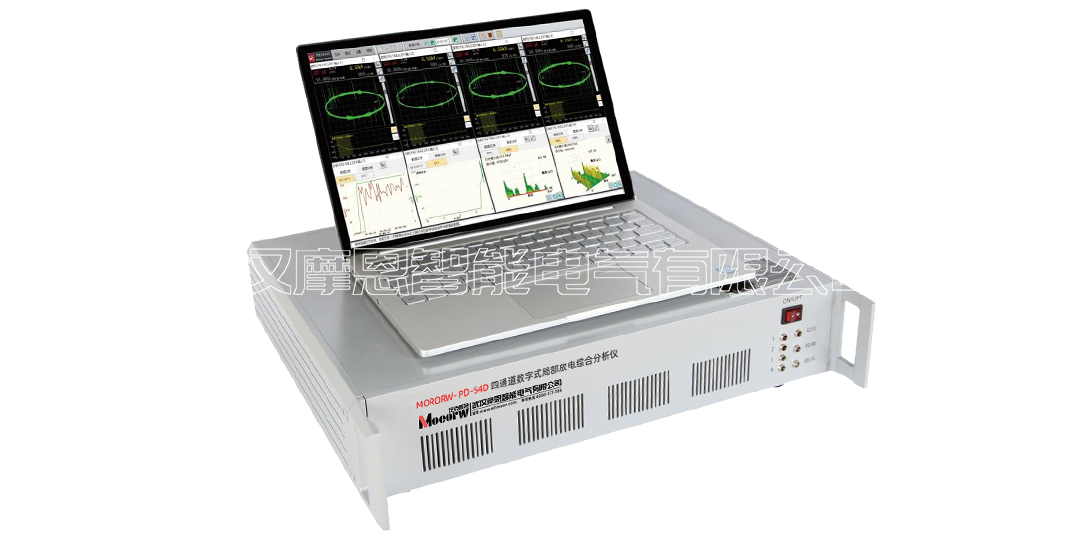

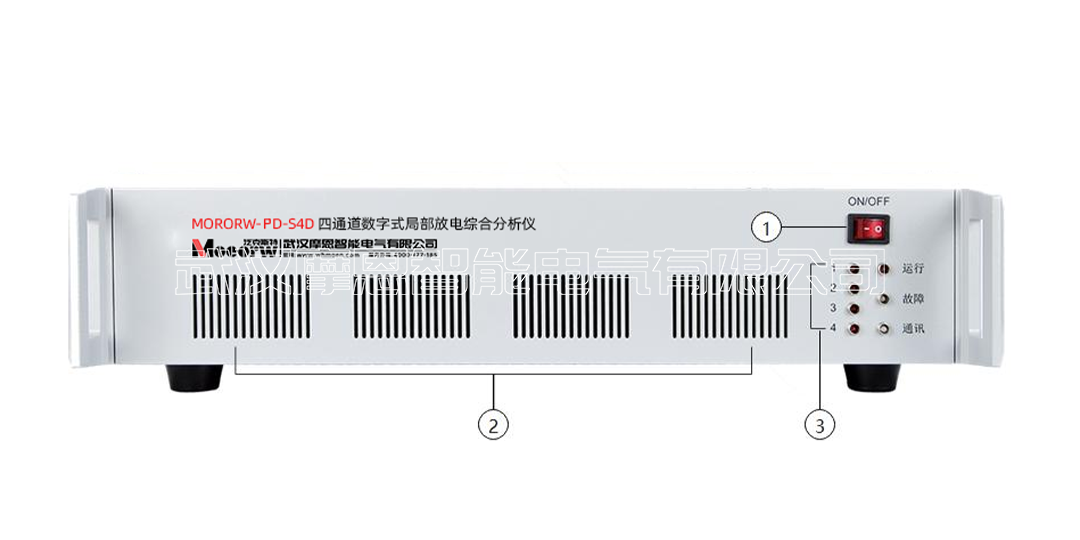

MORORW-PD-S4D Four-channel digital partial discharge comprehensive analyzer Send email to us

Partial discharge measurement system
1. Number of partial discharge measurement channels: 4 channels (multiple units can be connected to 16 channels)
2. Input impedance: 50Ω
3. Analog filter (-6dB):
Meet IEC60270, GB/T7354-2018 standards
Lower limit frequency fL: 10kHz, 20kHz, 40kHz, 60kHz, 80kHz optional
Upper limit frequency fU: 100kHz, 200kHz, 300kHz, 400kHz, 500kHz,
1MHz optional
4. Detection sensitivity: <1pC (CA =10nF/CK=1nF)
<0.1pC (CA =1nF/CK=1nF)
5. Sampling accuracy: 14bit
6. Sampling rate: 80MHz
7. Gain adjustment range: 60dB, 40dB, 20dB, 0dB, -20dB, -40dB automatic or manual adjustable
8. Capacity range of testable products: 6pF~250μF
9. Linearity error: < ±3%

Voltage measurement system
1. Number of voltage measurement channels: 4 channels (multiple connected machines can reach 16 channels)
2. Voltage input range: 5~230VAC (RMS)
3. Linearity error: < ±3%
4. Frequency range: 10~450Hz
5. Synchronization mode: automatic switching of power synchronization or voltage input synchronization
6. Synchronization accuracy: <1°

Interfaces
1. Partial discharge input: 4 × BNC
2. Voltage input: 4 × aviation plugs
3. Ethernet/LAN: 1 × RJ-45

PC requirements
1. Operating system: Windows7/Windows10 64-bit operating system
2. Processor: Intel CORE i5 and above
3. Memory: 8G and above
4. Hard disk: 128G and above
5. Network interface: 10/100/1000Mbps

Physical and environmental specifications
1. Power supply: 176~264 VAC, 50/60Hz
2. Power fuse: 250V T 5A
3. Operating temperature: -10°C~50°C
4. Storage temperature: -40°C ~60°C
5. Relative humidity: 5%~95%, no condensation
6. Dimensions (width × depth × height): 445mm ×355mm ×88mm
7. Weight: 11.7kg
