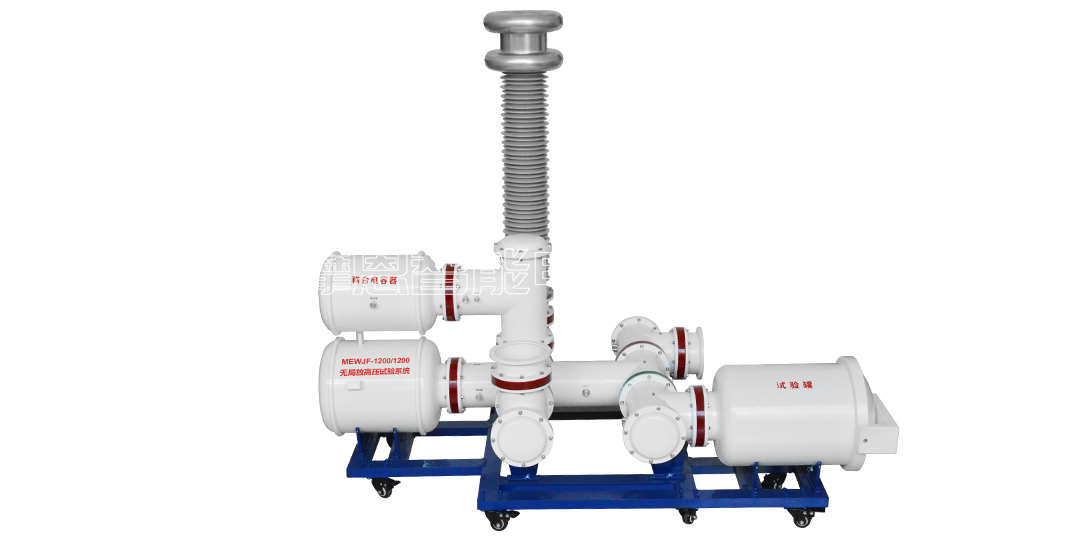

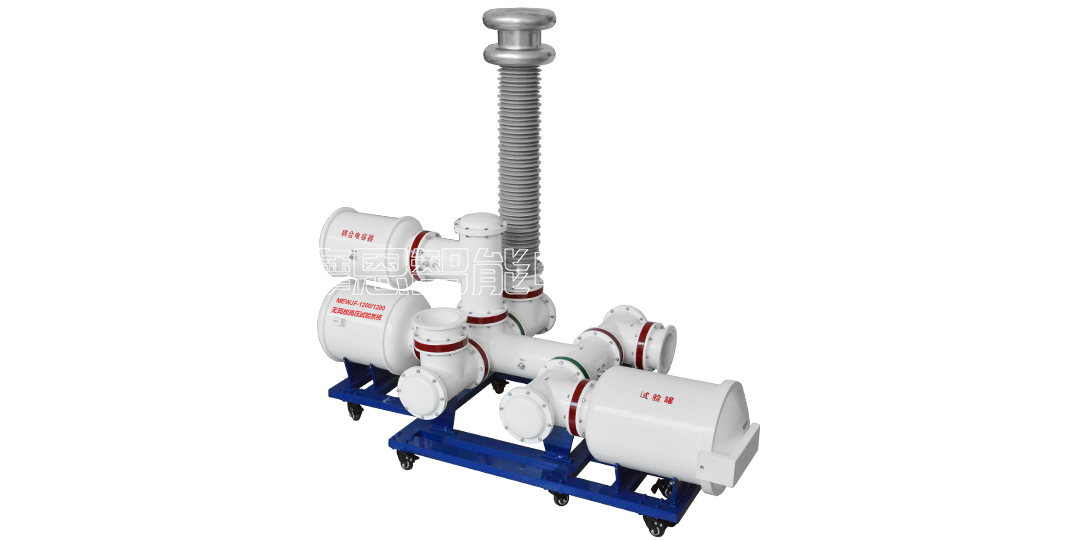

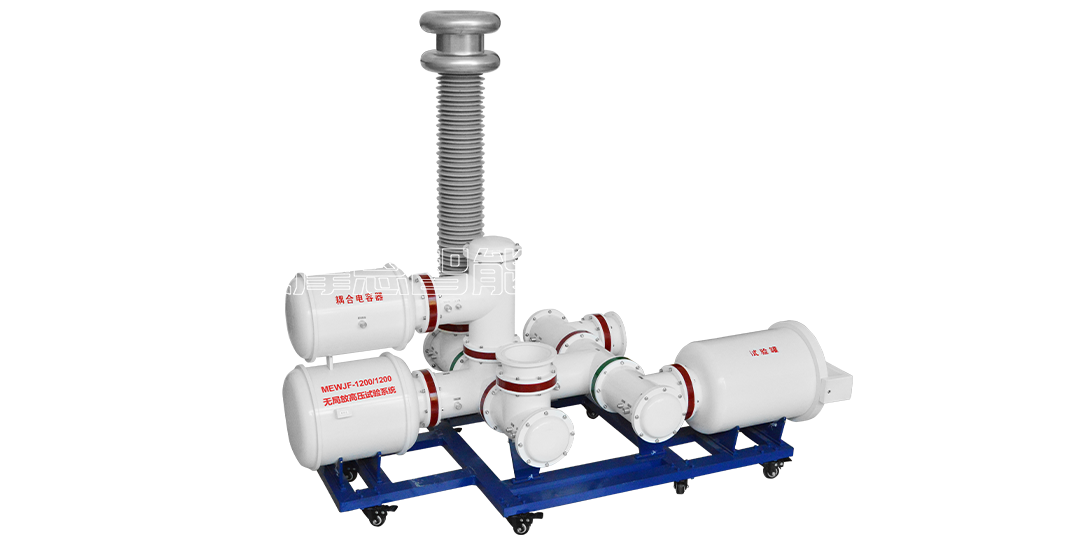

MEGTS Tank type high voltage non-partial discharge combined test system Send email to us

1. The device is small and can use the smallest space

2. The components are light

3. A strong and durable structure that can withstand long-distance transportation

4. Directly connected to the test product

5. All high-voltage parts are fully enclosed in a closed space to ensure the high safety of operators

6. A wide range of applications, with the addition of a casing, it can perform pressure tests on conventional equipment

7. Built-in high-voltage measurement and partial discharge coupling capacitors

8. The built-in high-voltage isolation switch can separate the interfaces of multiple test products to ensure safety during high-voltage testing

1. Basic system components
Pole-type voltage regulator (GIS voltage transformer system uses variable frequency power supply components)
GLB type power isolation transformer
BCL type compensating reactor
GTU type non-partial discharge test transformer
High voltage divider (capacitive type)
A basic test interface
Digital operation console
Coupling capacitor

2. Available options
Partial discharge tester
SF6 high voltage bushing and disconnector
Test interface and disconnector for different types of test products
Universal adjustment docking platform for GIS switch test
Standard voltage transformer (only applicable to GIS voltage transformer test system)
Three-phase test transfer switch
Insulator test tank
Partial discharge standard injection port
Peak voltage meter
