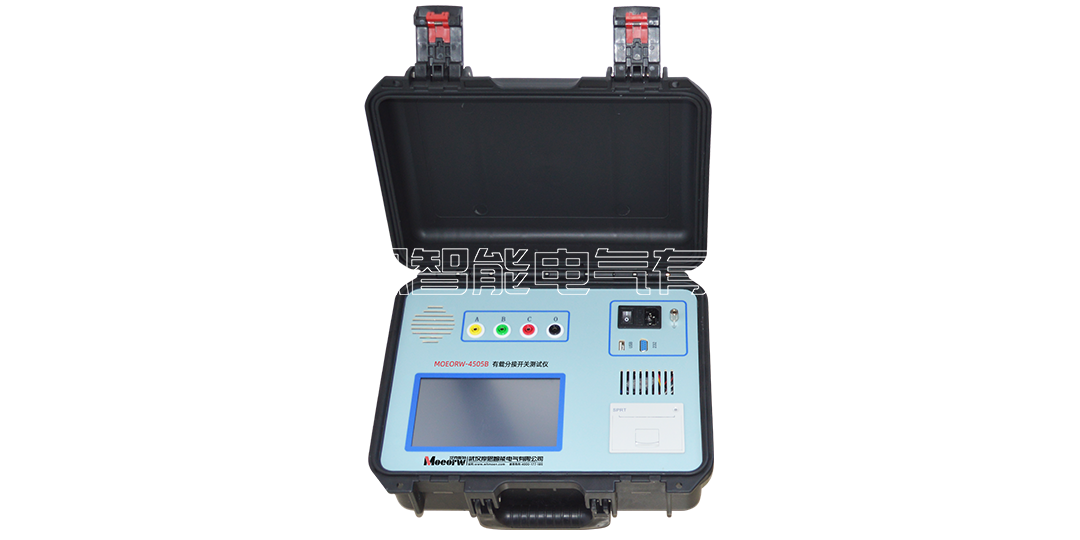

MOEORW-4505B On-load tap-changer tester Send email to us

1. The instrument has large output current and light weight;

2. Test Yn, Y, and D type transformers, and the resistance value is directly displayed without conversion;

3. It can be measured with or without windings;

4. The waveform display automatically adjusts the resistance and time value amplitude according to the sampling value

5. It has a complete protection circuit and strong reliability;

6. Seven-inch high-brightness touch color LCD, clear display under strong light, full touch screen operation, free switching between Chinese and English

7. Built-in large-capacity lithium battery, no external power supply (optional);

8. 500 sets of data can be automatically saved internally.

9. The instrument can be used with Android phones or tablets, follow the WeChat public account, download the dedicated APP, control the instrument throughout the process through dedicated software, and upload the test data for easy reference.

1. Output current: 1.0A, 0.5A, 0.1A

2. Measuring range: Transition resistance: 0.3Ω～20Ω(1.0A)   5Ω～40Ω(0.5A)     20Ω～100Ω(0.1A)

Transition time: 0～320ms

3. Open circuit voltage: 24V

4. Measurement accuracy: Transition resistance: ±(5% reading ±0.1Ω)

Transition time: ±(0.1% reading ±0.2ms)

5. Sampling rate: 20kHz

6. Storage method: Local storage

7. Dimensions: Host: 360*290*170 (mm) Wire box: 360*290*170 (mm)

8. Instrument weight: main unit 6kg wire box 4.5kg

9. Test line length: standard 13 meters, length can be customized
