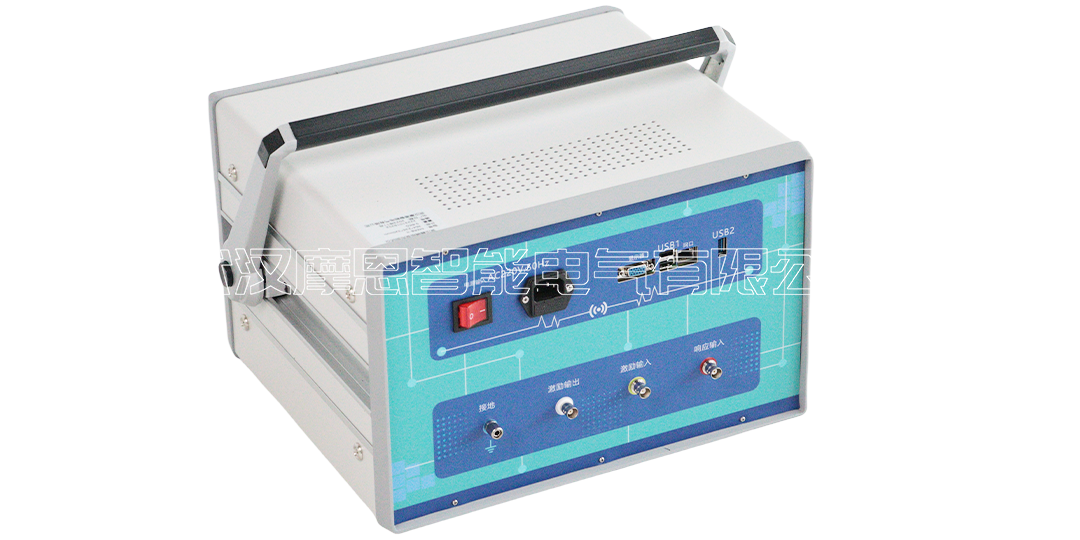

MERB-V+ Transformer Winding Deformation Tester Send email to us

1) The technical performance fully complies with the national standard DL/T 911-2004 "Frequency Response Analysis Method of Power Transformer Winding Deformation";

2) Use high-performance embedded processing chips, digital narrowband filtering and other technologies to effectively suppress power frequency and high-frequency interference;

3) The tester can be connected to the tester using wired network and wireless WIFI (split machine), which is convenient for on-site measurement;

4) The sweep frequency range is from 1KHz to 2000KHz, and the sweep frequency mode can be flexibly selected to facilitate data comparison and analysis;

5) The measurement speed is fast, with an average of 1000 frequency points and the measurement time does not exceed 1 minute;

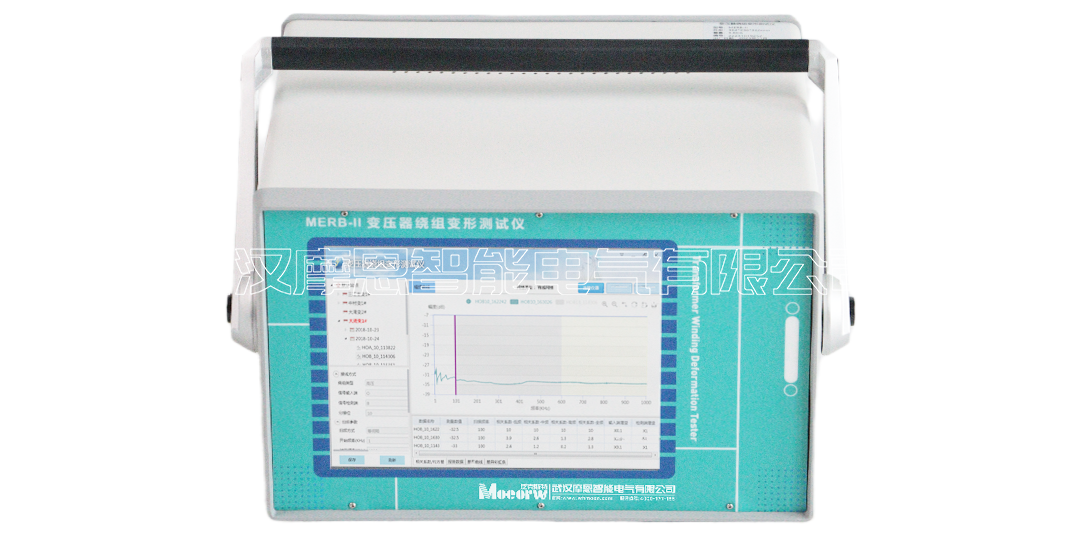

6) The all-in-one machine uses a high-reliability industrial computer with a screen resolution of 1024×800, and the display effect is clear and delicate;

7) A variety of graphs and data results are displayed, such as amplitude-frequency diagrams, difference curves, difference rainbow bars, etc. The curves are highly adaptively adjusted to facilitate detailed observation;

8) The main functions of the system are completed in one operation interface, which is convenient for users to operate;

9) The test data can be "sealed" to protect the data and facilitate subsequent longitudinal comparison;

10) Support test data report generation and print output;

11) Short circuit protection ensures that the instrument is not damaged in the event of an accidental short circuit during wiring.

1.1 Main technical indicators

1) Frequency sweep characteristics

Frequency range: 1KHz~2MHz; (frequency accuracy 0.005%)

Output impedance: 50Ω;

Output amplitude: 20Vpp (maximum), output amplitude automatically adjusted by software;

Frequency sweep mode: linear distribution frequency sweep detection method, equal interval. (Optional interval: 0.5kHz/1kHz/2kHz, default 1kHz)

2) Signal detection

Detection range: -100dB~+20dB;

Detection accuracy: ±1dB in the range of -60dB~+20dB;

-80dB~ -60dB detection accuracy ±2dB;

3) Data display

Display spectrum: amplitude frequency/difference curve/difference rainbow bar;

Frequency range: 1KHz~2MHz (optional);

Data comparison: The data to be analyzed is compared with the fingerprint data as a reference.

4) Impedance matching: Signal detection end input impedance: 1MΩ.

5) Frequency selection filter characteristics: The frequency selection bandwidth of the digital filter is 0.5% of the measurement frequency.

6) Power supply: AC 220V, 50Hz.

7) Physical characteristics

Size: 364*236*320 mm Weight: 9.8kg. (excluding packaging box)

8) Applicable environment
Temperature: -10℃～45℃ Humidity: <90%, no condensation.
