This series of impulse voltage generators are mainly used to generate standard lightning impulse voltage full wave, lightning impulse voltage chopped wave, oscillating lightning impulse voltage wave, standard operation impulse voltage wave, oscillating operation impulse voltage wave, steep wave impulse voltage wave, and conduct impulse voltage tests and other scientific tests on insulators, air gaps, bushings, power transformers, lightning arresters, GIS and other power transmission and transformation equipment.

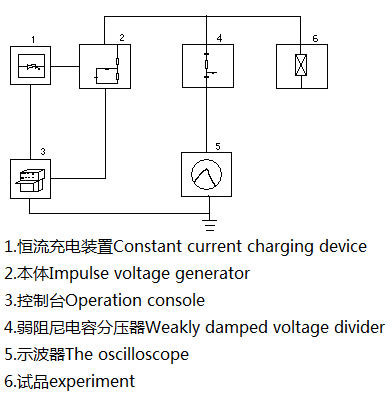

The impulse voltage generator is mainly composed of charging device, main body, control equipment and measuring equipment. The figure below shows the block diagram of this series of impulse voltage generators.
1.The altitude should not exceed 1000 meters;
2.The ambient temperature should be -10℃～+45℃, and the relative humidity should not exceed 90%;
3.No dust and corrosive gas;
4.The generator body should be reliably grounded nearby, and the grounding grid should have a low grounding resistance (below 0.5 ohms) and good impact characteristics.
We provide you with free consultation services
Engineers provide guidance for installation and commissioning
Technicians can provide on-site maintenance services and receive regular training
Perfect technical consulting service system
