Used for handover test of power cables, to check for potential risks during cable transportation or installation, and to ensure the safety and reliability of line operation. Used for pre-test of power cables: to confirm the quality of cable terminals and intermediate joints after maintenance and installation. Used for status diagnosis of running cables, to estimate the status of running cables by measuring partial discharge and dielectric loss of power cables, and to determine the insulation condition of cables after long-term operation, so as to scientifically arrange maintenance and improve the operation efficiency and reliability of cables. Effectively detect various local defects of cables and accurately locate them.
Hardware functions：
Generate damped oscillation voltage wave;
Withstand voltage test;
Partial discharge test;
With overvoltage, short circuit and overload protection.

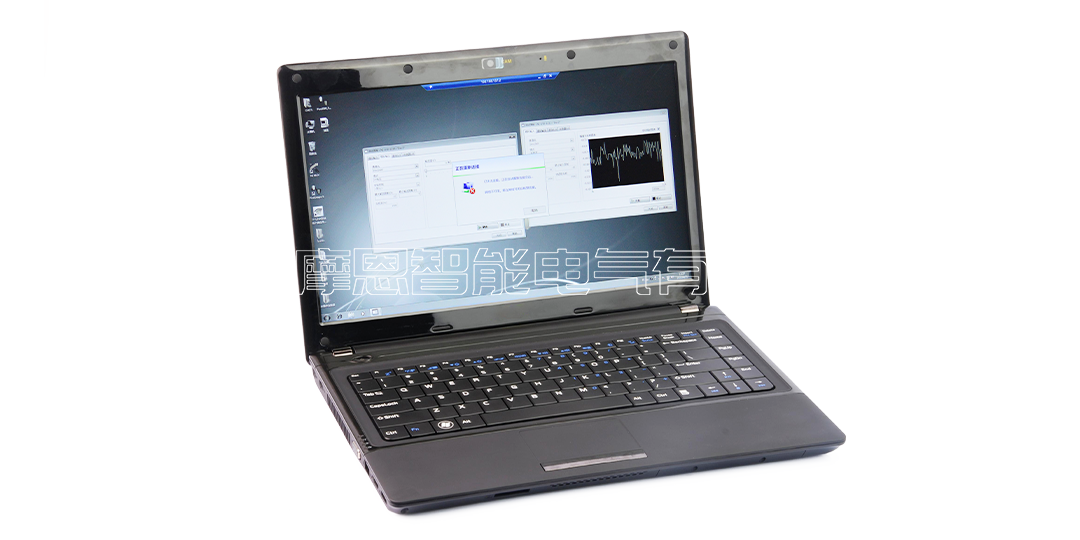

Software functions：
Fault location point;
Pulse separation based on equivalent time-frequency analysis;
Generate discharge characteristic spectrum;
Obtain apparent discharge information, discharge start voltage, discharge extinction voltage, etc.;
Customized report.
Charge calibration function.
Test voltage control and measurement function.
Data storage and reading function.
Spectrum display and editing function of partial discharge location results

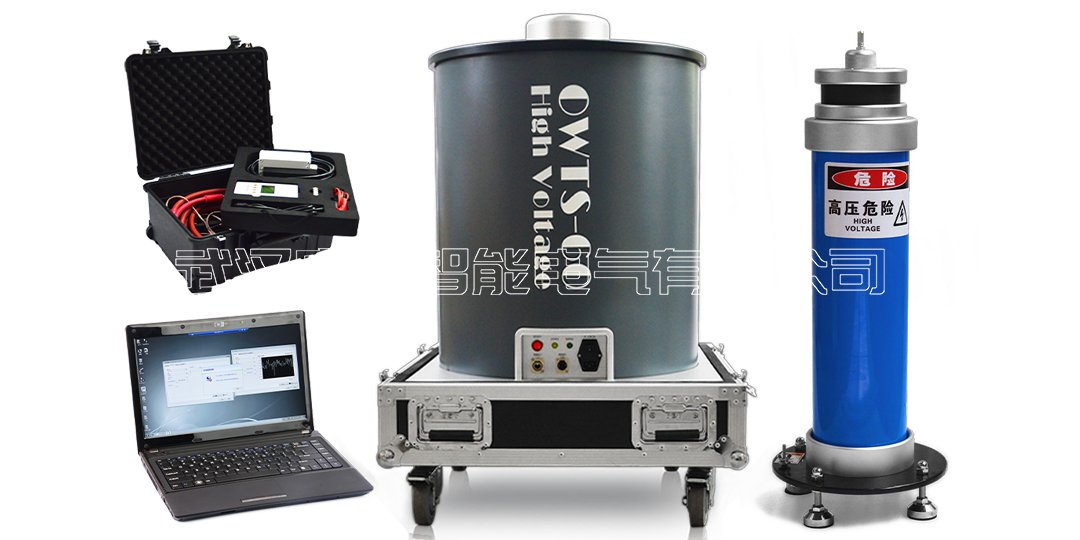

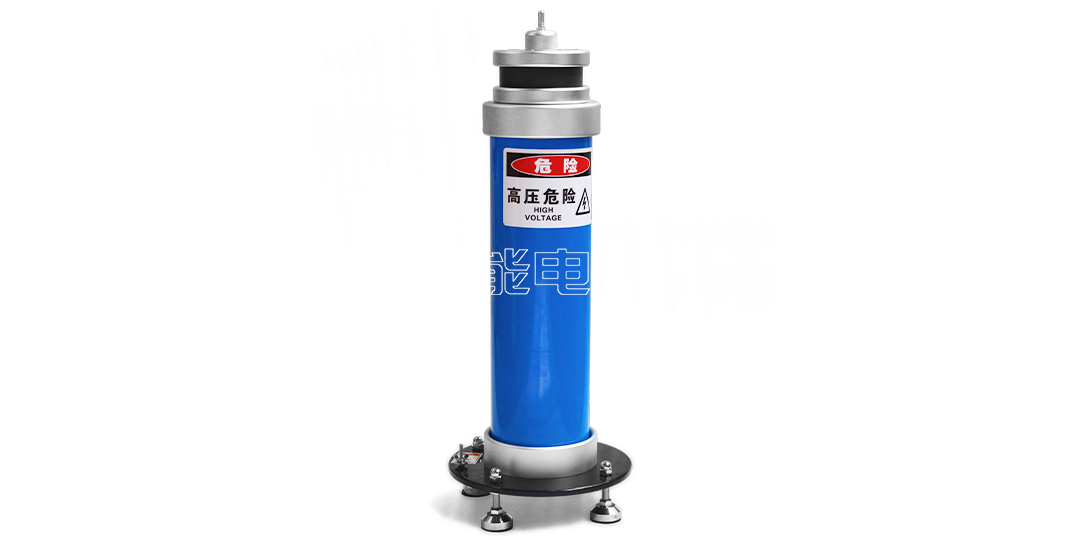

Technical indicators: ME-OHLT10

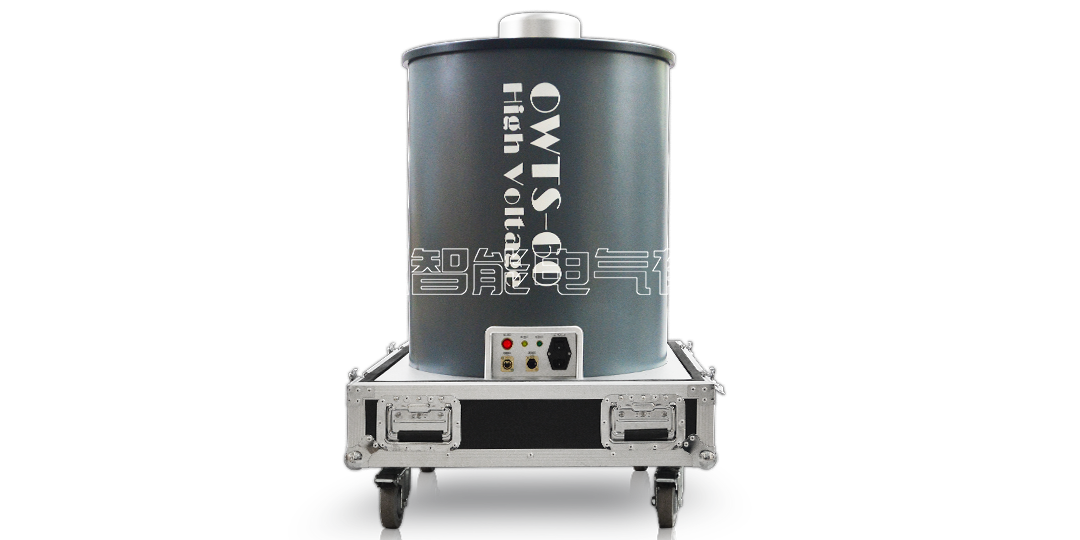

Low damping oscillation power supply: Peak voltage ≥30kV Effective value ≥21.2K V Oscillating current ≥70A
Charging time: less than 8 s
Electronic switch type: IGBT
Charging current: 10mA
Test voltage frequency: 20Hz～800Hz
Cable capacitance: 0. 05μF-4μF
Partial discharge level test range: 1pC-200nC
Partial discharge positioning bandwidth: 150kHz-50MHz Bandwidth can be automatically selected
Local positioning accuracy: 1% of cable length
Maximum test length: 5km
Dielectric loss angle tanδ test: 0. 1%～10%
Total instrument weight: 50kg

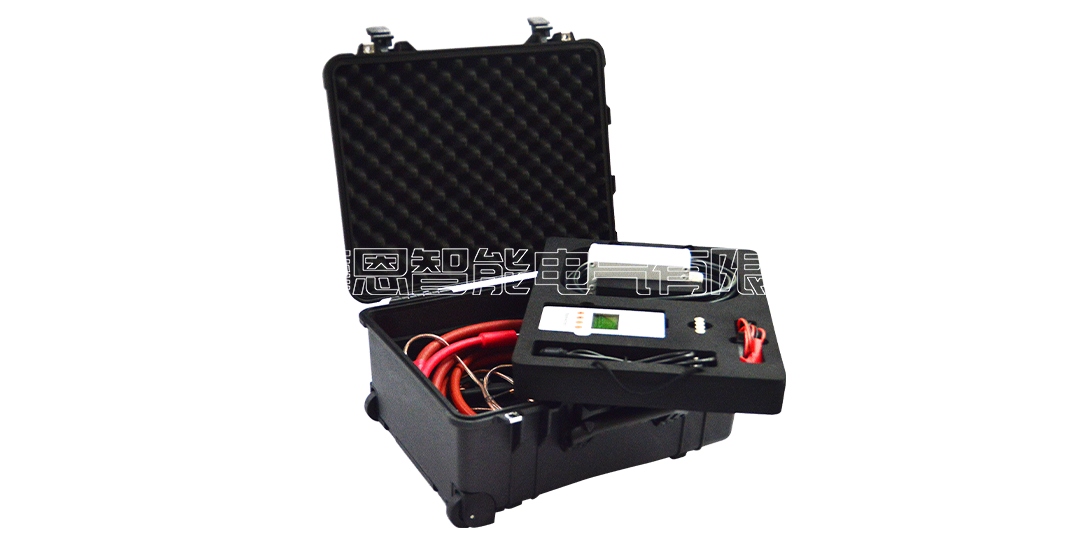

Calibrator: Shift: 1pC-200nC Rise time: no more than 30ns Pulse amplitude accuracy: 2%/5% Pulse frequency: 100Hz/200Hz Calibration capacitor: 100pF/1nF
Power supply: 4 1.5V batteries; Instrument weight: 600g
We provide you with free consultation services
Engineers provide guidance for installation and commissioning
Technicians can provide on-site maintenance services and receive regular training
Perfect technical consulting service system
