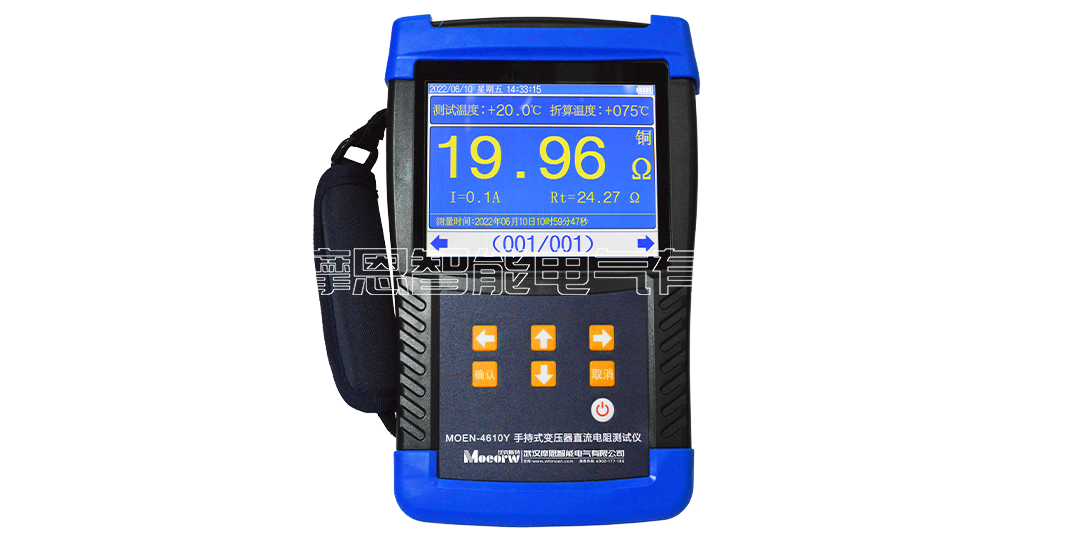

MOEORW-4610Y Handheld Transformer DC Resistance Tester Send email to us

1. Lithium battery power supply or 220V AC power supply adaptive, one charge can continuously test the DC resistance of hundreds of transformers, the test process is simple and convenient.

2. Six-speed output current, maximum output current of 10A, maximum output voltage of 25V, and can automatically select current, convenient and fast.

3. Wide range and high precision, 500uΩ～50KΩ.

4. It has the function of resistance temperature conversion, and can be equipped with a wireless temperature measurement module to measure the temperature of the on-site test product in real time to ensure the accuracy of the resistance conversion value.

5. It has multiple protection functions such as back electromotive force protection, disconnection protection, power failure protection, overheating alarm, etc.

6. 5.6-inch ultra-large industrial-grade high-brightness color LCD screen, the display is still clearly visible under strong sunlight.

7. Equipped with an external printer (optional) for easy data printing.

8. It has local storage and USB storage.

DC resistance test:
1. Current range: 10A, 5A, 1A
2. Measuring range: 500u. ~200mΩ, 10mΩ ~1Ω, 100mΩ-20Ω
3. Current range: 100mA, 10mA, 1mA
4. Measuring range: 10Ω ~200Ω, 50Ω ~2kΩ, 500Ω ~50kΩ
Technical indicators:
1. Accuracy: ±(reading X0.2% + 2 words)
2. Maximum resolution: 0.1uΩ
Usage conditions and appearance:
1. Working power supply: built-in lithium battery or external charger, charger input. 100 ~240VAC, 50Hz/60Hz
2. Charging voltage: 16.8V
3. Charging current: ≤3A
4. Charging time: about 4 hours
5. Use time: more than 8 hours
