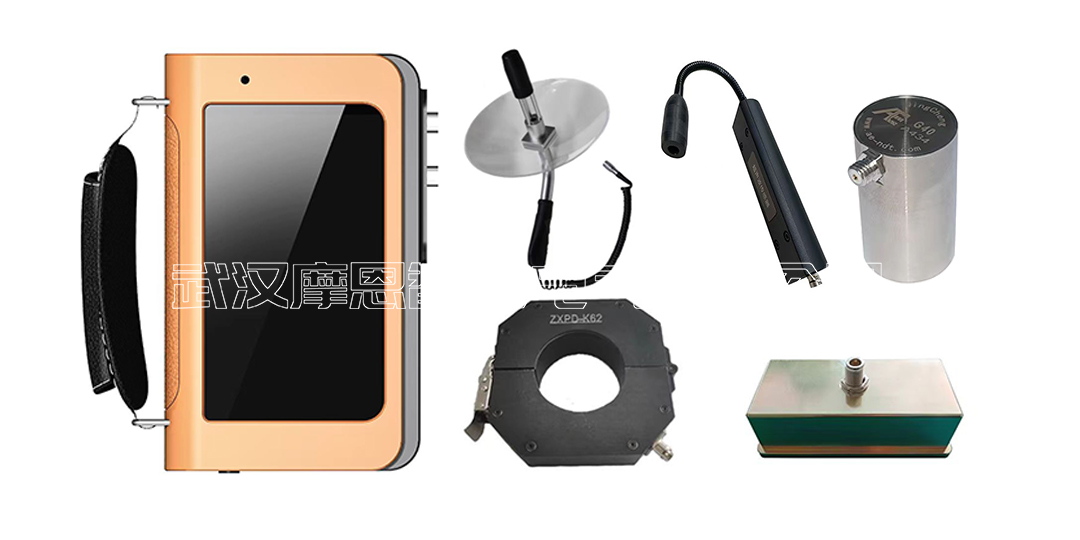

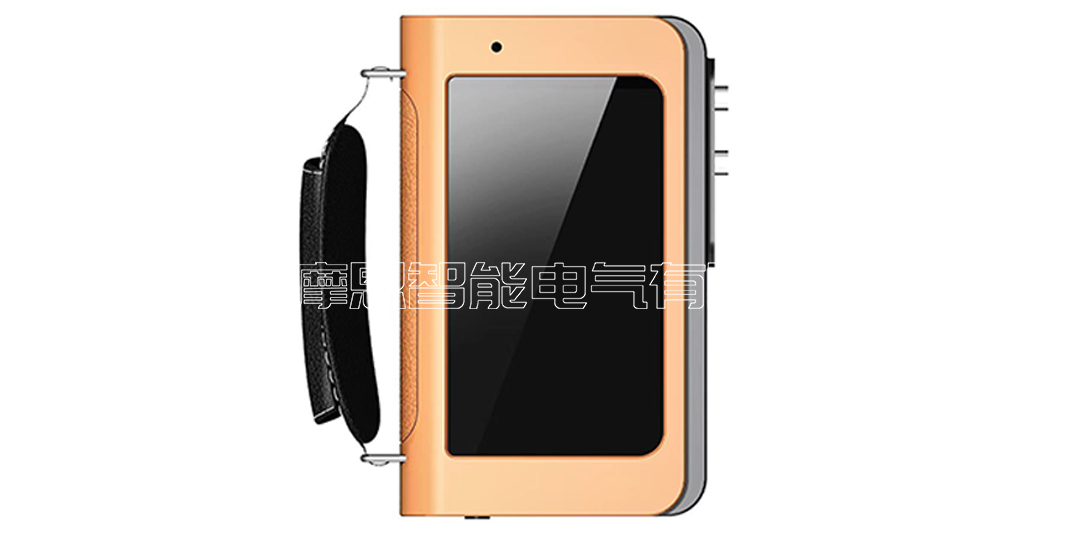

MEPD-5030NC Multifunctional infrared partial discharge tester Send email to us

1) It can quickly detect the partial discharge of high-voltage electrical equipment, especially high-voltage cables, on site. It is easy to use, small in size, light in weight and easy to carry.
2) The circuit design of the partial discharge detection sensor uses advanced radio frequency signal processing, high-frequency signal processing and weak signal processing technology, and uses high-precision AD conversion and high-speed digital signal processing chips for digital signal processing, with good anti-interference performance and measurement accuracy.
3) It combines ultrasonic waves, transient ground waves, high frequency and ultra-high frequency to jointly detect partial discharge signals.
4) Built-in non-contact air sound sensor, which can be configured with an external surface-mounted ultrasonic sensor.
5) It has multiple windows such as phase line, PRPD, PRPS, etc. to analyze partial discharge test data.
6) It supports data storage, viewing, deletion and other functions.
7) It supports waveform data recording function.
8) It supports multi-level threshold settings for attention and alarm, and provides intuitive prompts for problems through different amplitude colors.
9) It is powered by a large-capacity lithium battery and can work continuously for 6 to 8 hours on a single charge.
10) Use Linux as the embedded operating system to facilitate later function expansion and integration of Internet of Things technology.

1. Non-contact ultrasonic sensor (AA)
Sensor center frequency: 40KHz±1KHz
Measurement range: -7~68dBuV
Signal gain: 60-100dB
Resolution: 0.1dB
Linearity error: <±20%
Sensor form: built-in, bendable form/wave collector form (optional)
2. Contact ultrasonic sensor (AE)
Detection frequency band: 20KHz~200KHz
Dynamic measurement range: 70dB
Resolution: 0.1dB
Linearity error: <±20%
Connection method: external signal line connection;
3. Transient ground voltage sensor (TEV)
Detection frequency band: 3MHz~100MHz
Measurement range: 0~70dBmV
Resolution: 0. 1dB
Linearity error: <±20%
Connection method: built-in/external signal line connection;
4.UHF sensor (UHF)
Detection frequency band: 300MHz~1500MHz
Measurement range: -70dBm~-10dBm
Average effective height of sensor: ≥10mm
Resolution: 0.1dBm
Connection method: external signal line connection;
5.High frequency sensor (HF)
Detection frequency band: 0.3MHz~30MHz
Measurement range: 0~70dB
Gain: -30~40dB
Resolution: 0.1dB
Transmission impedance: ≥10mV/mA
Connection method: external signal line connection;
6.Complete machine parameters
Working environment: temperature -20℃~50℃, humidity 0~85 %
Display: HD 6.5-inch touch screen, resolution 800*480;
Host volume: 195X120X38mm;
Host weight: 0.7 kg;
Battery life: about 6 hours
