MEPD-5026 Multifunctional infrared partial discharge tester Send email to us

1. Configure different sensors to realize partial discharge detection of almost all high-voltage electrical equipment;
2. Provide time domain waveform, PRPD, PRPS and other discharge spectra to realize analysis of different discharge types;
3. Humanized man-machine interface facilitates data management of different equipment;
4. Built-in ultrasonic sensor and transient ground voltage (hereinafter referred to as TEV) sensor, which can be connected to special sensors such as transformers, GIS, overhead lines, cables, etc.;
5. Adopt non-invasive detection method, no power outage is required during the test, no additional high-voltage source is required, which is more convenient to use than traditional pulse partial discharge detector;
6. The test bandwidth range is 30kHz ~ 2.0GHz, which is applicable to the detection principle of various frequency bands;
7. The additional infrared thermal imager can convert the infrared radiation on the surface of the object that is invisible to the naked eye into a visible image. Infrared thermal imaging is not affected by visible light, and has the advantages of non-contact temperature measurement, smoke and fog penetration, etc., which is very suitable for temperature detection of electrical equipment.
8. The image color and hot spot tracking display function displayed on the screen can preliminarily judge the heating situation and fault location, so as to confirm the problem efficiently and accurately.

Shell: ABS
Host size: 248*165*55 (length*width*thickness, mm)

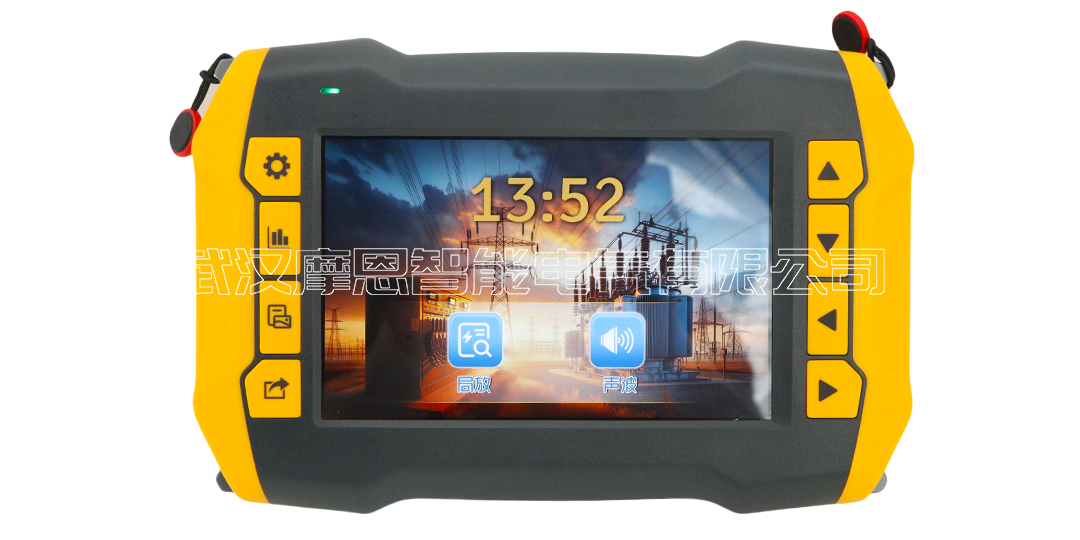

Display: 7-inch capacitive touch screen, resolution 1280*800
Sampling accuracy: 12bit
Synchronization mode: internal synchronization, external synchronization
Connector: USB interface (also charger input) external sensor input interface wifi, network port, Bluetooth
SD card: standard 16G~64G
Built-in battery: 3.7V/5000mAh lithium battery
Working time: about 6 hours
Charger: 100~240VAC, 50/60Hz
Using temperature: -35℃~50℃
Humidity: 30%~60%
Volume, weight: 1.3kg
