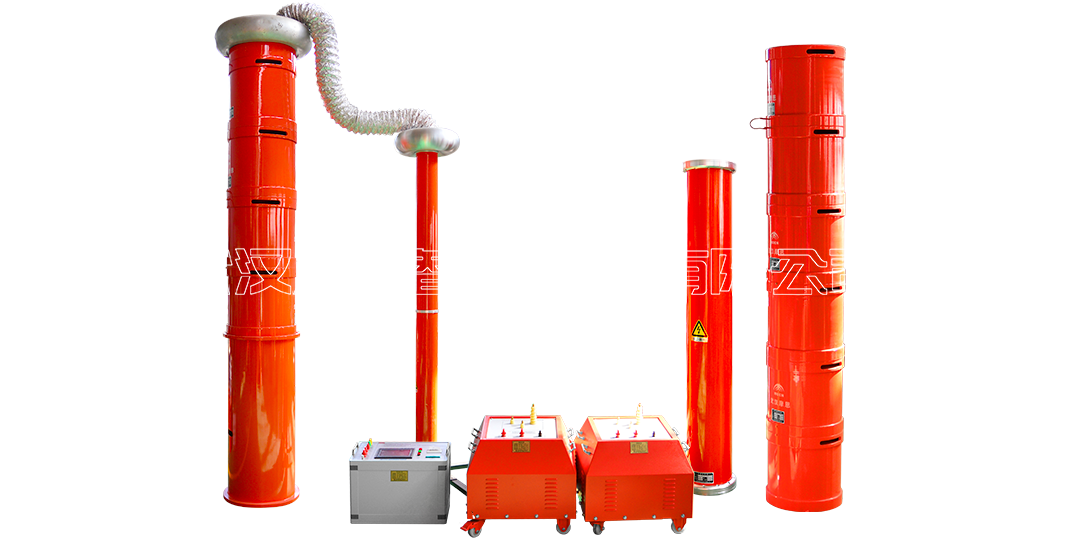

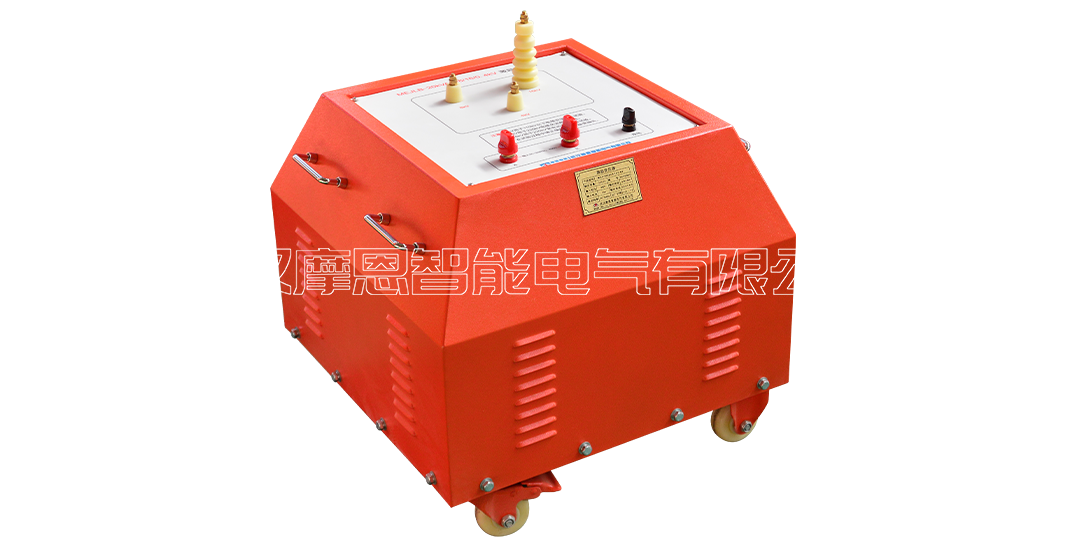

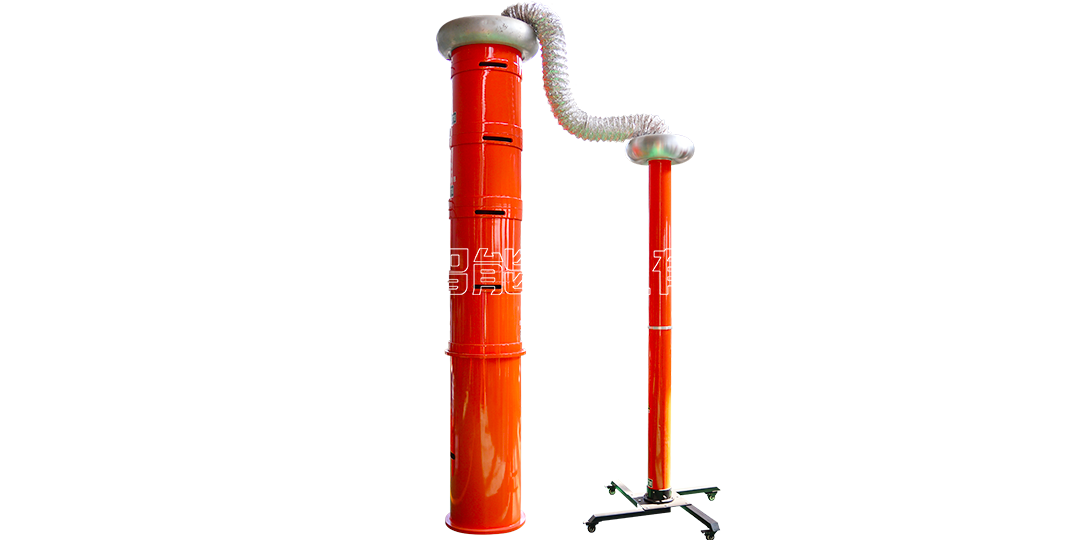

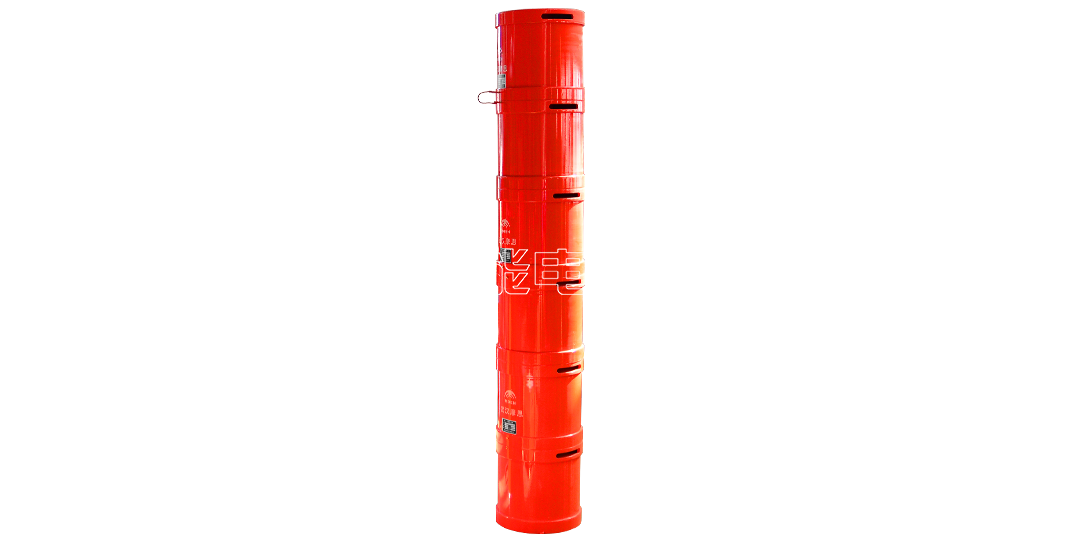

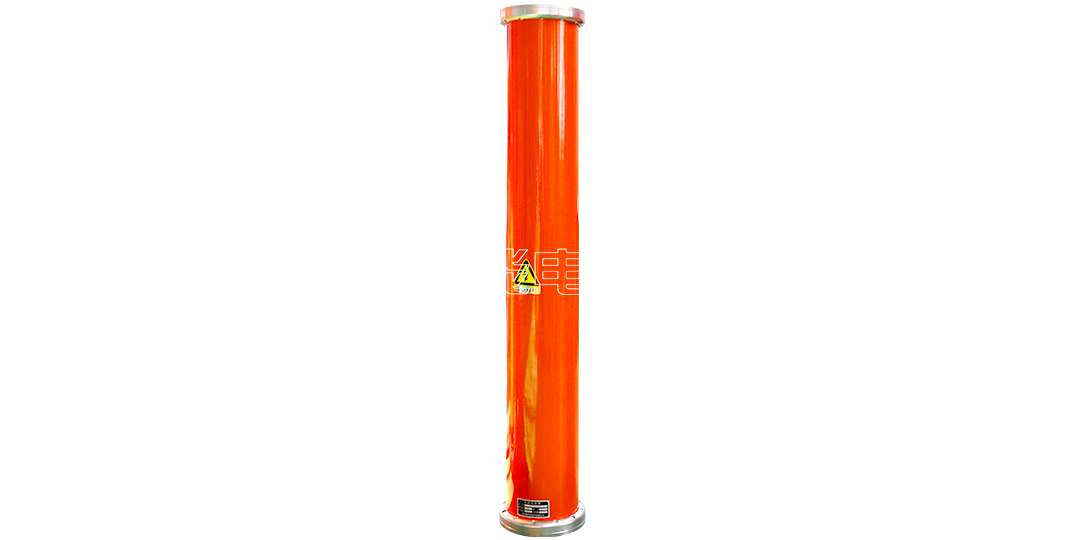

The device is mainly designed and manufactured for AC withstand voltage test of all electrical main equipment such as 110kV and 35kV cables, generators, and 35kV and below power main transformers, bus switches, etc. The reactor adopts a multiple separate design, which can meet the test conditions of high voltage and low current equipment, and can also meet the AC withstand voltage test requirements of low voltage such as 10kV cables. It has a wide range of applications and is an ideal withstand voltage equipment for high voltage test departments at the prefecture, city, and county levels and power installation, repair and test engineering units.
1. The device has protection functions such as overvoltage, overcurrent, zero-position start, system detuning (flashover), etc. The overvoltage and overcurrent protection values can be set according to user needs. When the test product flashes, the flashover protection will be activated and the flashover voltage value can be recorded for test analysis.
2. The weight of the entire device is very light, with a maximum of no more than 40kg, which is convenient for on-site use.
3. The device has three working modes, which is convenient for users to flexibly choose according to on-site conditions and improve the test speed.
4. The working modes are: fully automatic mode, manual mode, automatic tuning manual boost mode
5. It can be stored, and the stored data number is a number, which is convenient for users to identify and find.

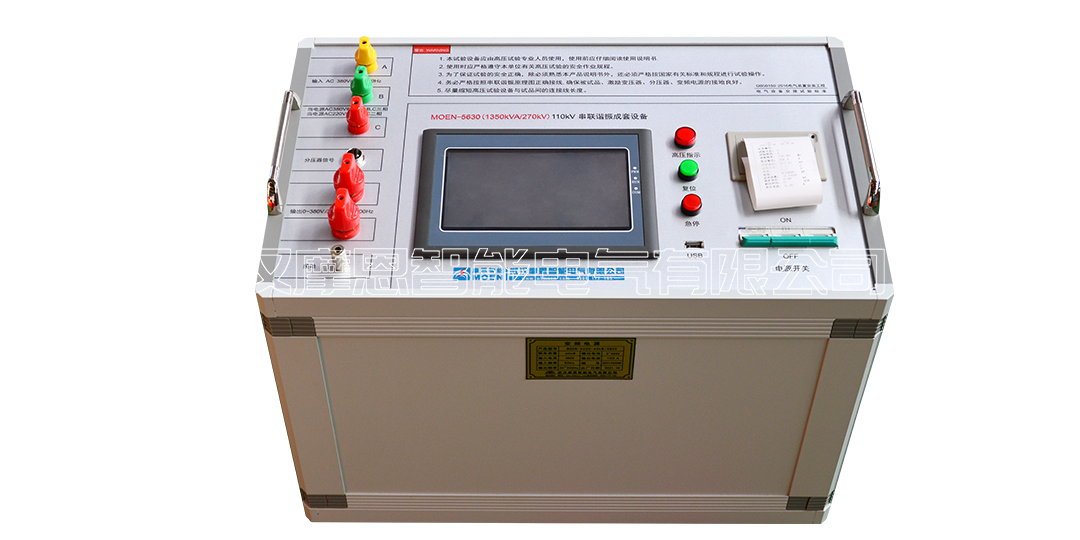

6. When the device automatically sweeps the frequency, the frequency starting point can be set arbitrarily within the specified range, and the sweep direction can be selected up or down. At the same time, the large LCD screen displays the scanning curve, which is convenient for users to intuitively understand whether the resonance point is found.
7. The use of DSP platform technology can easily add or remove functions and upgrade according to user needs, and also makes the human-computer exchange interface more user-friendly.
1350 refers to the maximum rated capacity that the device can output, in kVA
270 refers to the voltage level that the device can output, in kV;
1. Rated voltage:
27kV---meets 10kV cable AC withstand voltage test;
54kV---meets 35kV cable, 10kV system AC withstand voltage test;
108kV---meets 35kV system AC withstand voltage test;
135kV---meets 110kV cable AC withstand voltage test;
270kV---meets 110kV system AC withstand voltage test;
2. Output voltage wave Shape distortion rate: <1.0%
3. Allowable continuous working time: 30 minutes of one-time work under rated conditions, and 60 minutes of continuous work when the 35kV cable withstands voltage
4. Device quality factor: Q>50
5. Quality factor at full load during thermal generator test: Q>10 (related to load)
6. Quality factor at full load during cable test: Q>30 (related to load)
7. Quality factor at full load during main transformer test: Q>30 (related to load)
8. Quality factor at full load during GIS, switch test: Q>50 (related to load)
9. Input power: single-phase 380V
10. Frequency adjustment range: 20Hz~300Hz
11. System measurement accuracy: 1.5%
12. The device has protection functions such as overvoltage, overcurrent, and zero-position start
