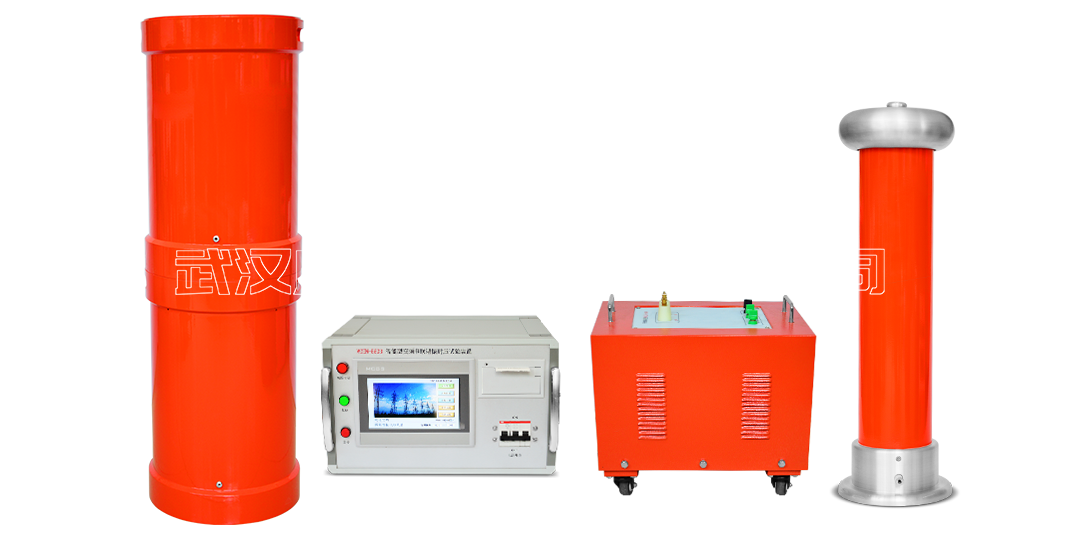

MOEORW-5603 Intelligent variable frequency series resonance withstand voltage test device Send email to us

1. The device has protection functions such as overvoltage, overcurrent, zero-position start, system detuning (flashover), etc. The overvoltage and overcurrent protection values ​​can be set according to user needs. When the test product flashes, the flashover protection will be activated and the flashover voltage value can be recorded for test analysis.

2. The weight of the entire device is very light, which is convenient for on-site use.

3. The device has three working modes, which is convenient for users to flexibly choose according to on-site conditions and improve the test speed. The working modes are: full automatic mode, manual mode, automatic tuning manual boost mode.

4. It can store and print data remotely. The stored data number is a number, which is convenient for users to identify and find.

5. When the device automatically sweeps the frequency, the frequency starting point can be set arbitrarily within the specified range, and the sweep direction can be selected up or down. At the same time, the large LCD screen displays the scanning curve, which is convenient for users to intuitively understand whether the resonance point is found.

6. The DSP platform technology is adopted, which can easily increase or decrease functions and upgrade according to user needs, and also makes the human-computer exchange interface more humane.

1. Rated voltage
22kV---meets the AC withstand voltage test of 10kV cable; working frequency: 30-300Hz,
test voltage 22kV, test time 5min;
2. Output voltage waveform distortion rate: <1.0%
3. Allowable continuous working time: 5 minutes of one-time work under rated conditions;
4. Device quality factor: Q≥30 (f=45Hz)
5. Device output waveform: sine wave
6. Input power: single-phase 220V
7. Frequency adjustment range: 30Hz~300Hz
8. System measurement accuracy: 1.5%
9. The device has overvoltage, overcurrent, zero-position start and other protection functions
