ME-6000K Multiple pulse cable fault test system Send email to us

Product Features

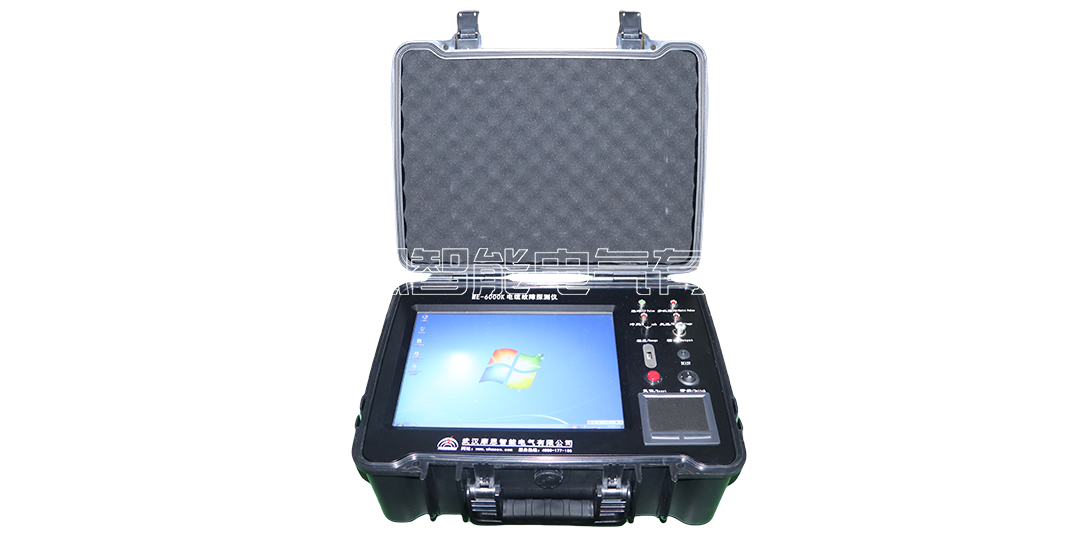

◆ Adopts industrial control embedded computer platform system, full computer win7 system operation platform, integrated software testing, and equipped with cable fault test software and cable data management learning software.
◆ Adopts 12.1in large screen touch system, touch pen touch mouse dual control, high brightness screen display, suitable for outdoor use in the sun, lithium battery power supply, convenient on-site testing. Engineering plastic chassis, shockproof and moisture-proof to achieve strong stability.

◆ Adopts USB communication interface, stable acquisition signal, the host can automatically select eight sampling frequencies from 3.125MHz to 250MHz, adaptive pulse width, can meet the test requirements of cables of different lengths, reduce rough measurement errors, and improve test accuracy.

◆ The software realizes automatic identification and search of low-voltage pulse and multiple pulse methods, automatic positioning of waveform fault inflection points, automatic reading and display of fault distance instruments, waveforms are displayed in three areas on the same screen, and ten low-voltage pulse waveforms are randomly displayed on the same screen for selection. At the same time, two modes of automatic and manual processing are realized, so that the waveform can be double-positioned. The movement of the double cursor can be accurate to 0.15 meters, which improves the rough measurement accuracy and reduces the waveform error.

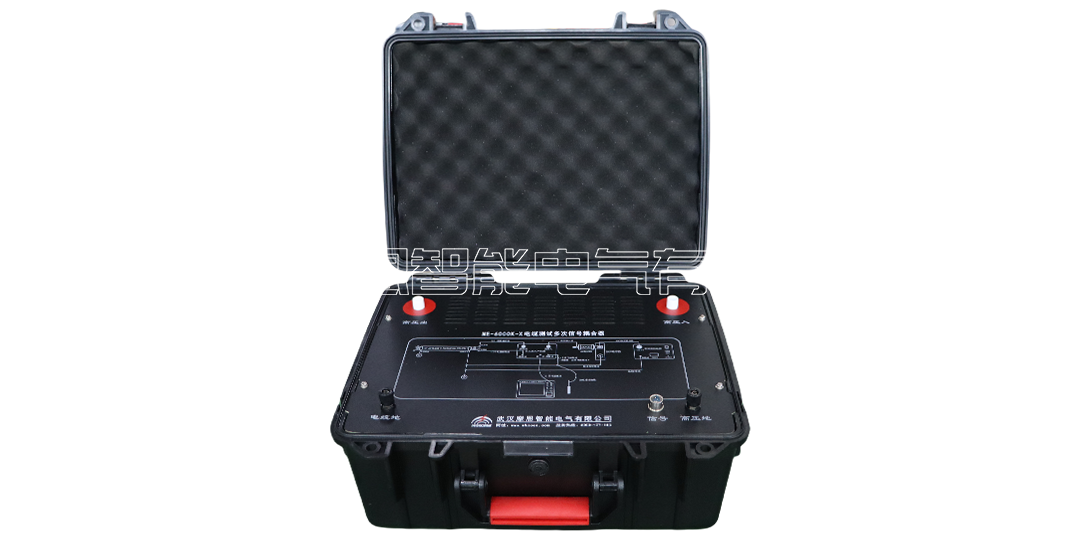

◆ The unique multiple pulse method generator design can complete the three methods of testing on site without reversing the line, and one discharge can obtain ten low-voltage short-circuit pulse waveforms, which greatly reduces the interference of large oscillations. The cable test multiple signal coupler is small in size and weighs only 5KG, which truly realizes the lightness of the whole set of equipment.

◆ The host supports the host's built-in WIFI receiving function. The dedicated 3G software can realize the expert remote on-site real-time testing technical services at any time. The expert remotely controls the user's host. The business technology is equipped with the mobile phone Android version of the test software, which provides users with on-site testing. Provide timely and accurate waveform analysis and communication guidance anytime and anywhere, so that you can work without worries.
◆Built-in on-site waveforms and on-site physical wiring diagrams are convenient for on-site test comparison and daily learning, and can automatically generate and print test reports. The cable data management software can do perfect cable file management, providing reference and help for cable maintenance and precise positioning.

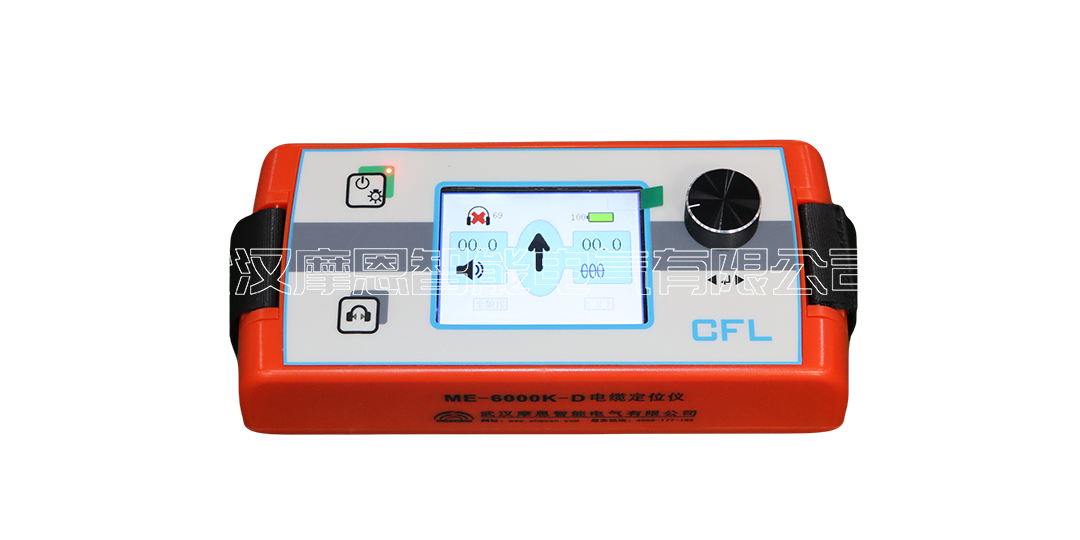

◆ The key precise positioning instrument part can directly display the distance between the tester and the fault point in digital form. The use of noise suppression technology is another innovation of similar domestic positioning technology, which provides a strong guarantee for quickly and accurately finding cable faults and reducing power outage losses.

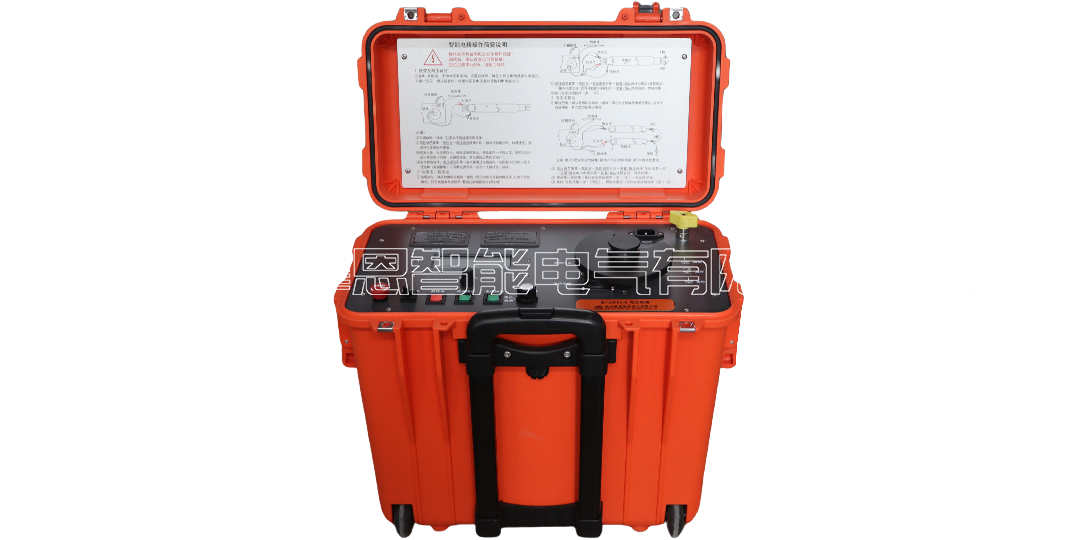

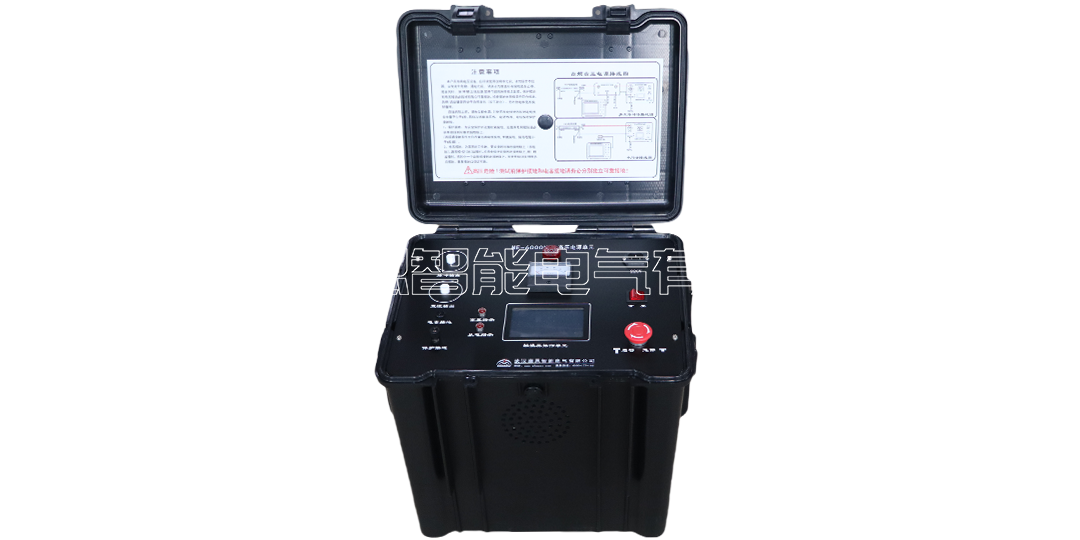

◆ The high-voltage discharge part is available for users to choose. The new 8.4kg integrated high-frequency high-voltage power supply replaces the 65kg test transformer and operation box, which has a wide range of applications and is truly comprehensive and lightweight.

1. It can test various faults of power cables with different voltage levels, different cross-sections, different media and various materials below 35kV, including: open circuit, short circuit, low resistance, high resistance leakage, and high resistance flashover faults.
2. It can test various faults of railway communication control cables, street light cables, and airport signal cables.
3. It can measure the speed of radio wave propagation in any cable with a known length.

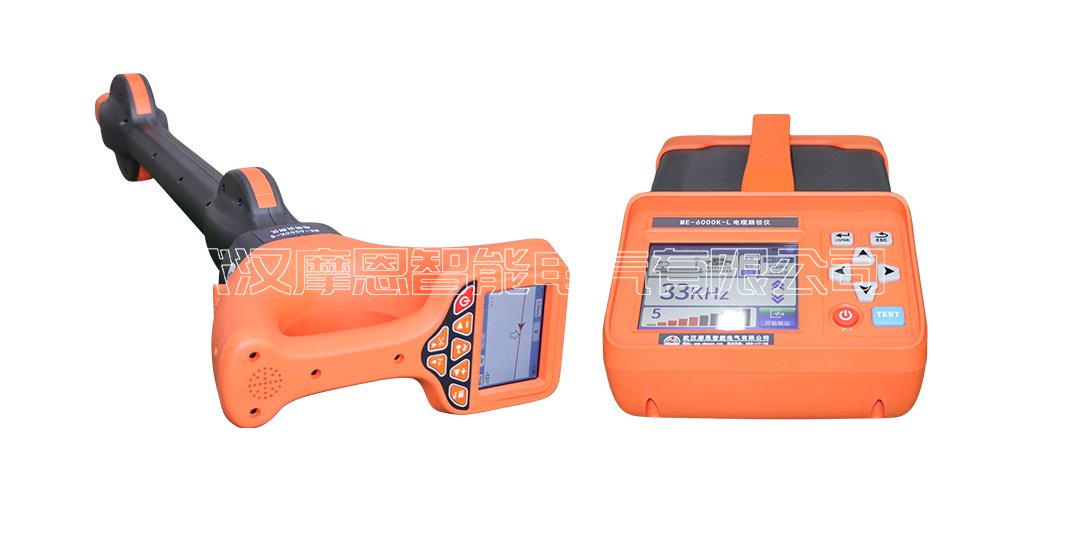

4. It can test the buried path and buried depth of power cables.
5. Display mode: 12.1-inch industrial-grade LCD touch screen (win7 operating platform) Storage space: fixed 32G
6. Test method: low-voltage pulse method, impulse current method, multiple pulse method
7. Operation mode: dual operation, touch pen and touch mouse operation
8. Test distance: ≤100km Shortest test distance (blind area): 0-5 meters or no blind area
9. Precise positioning error: ±0.2m Test error: System error is less than ±1%
10. Cable test multiple signal coupler: impulse voltage ≤40KV Resolution: V/fm; V is the wave transmission speed m/μs; software cursor 0.10 meters
11. Sampling frequency: 3.125MHz, 6.25MHz, 12.5MHz, 25MHz, 50MHz, 100MHz, 200MHz, 250MHz
12. Pulse width: 50ns, 80ns, 100ns, 200ns, 1μs, 2μs, 5μs, 10μs (automatic matching by software)
13. Power supply and power consumption: AC 220V±10% not more than 15W DC 12V (7AH) not more than 20W
14. Standby time: can be used continuously for about 6 hours.
15. Main unit weight: 6.2kg
16. Dimensions: 180mm×300mm×400mm
17. Temperature: -20℃～﹢40℃
18. Relative humidity: ≤80%
